Features

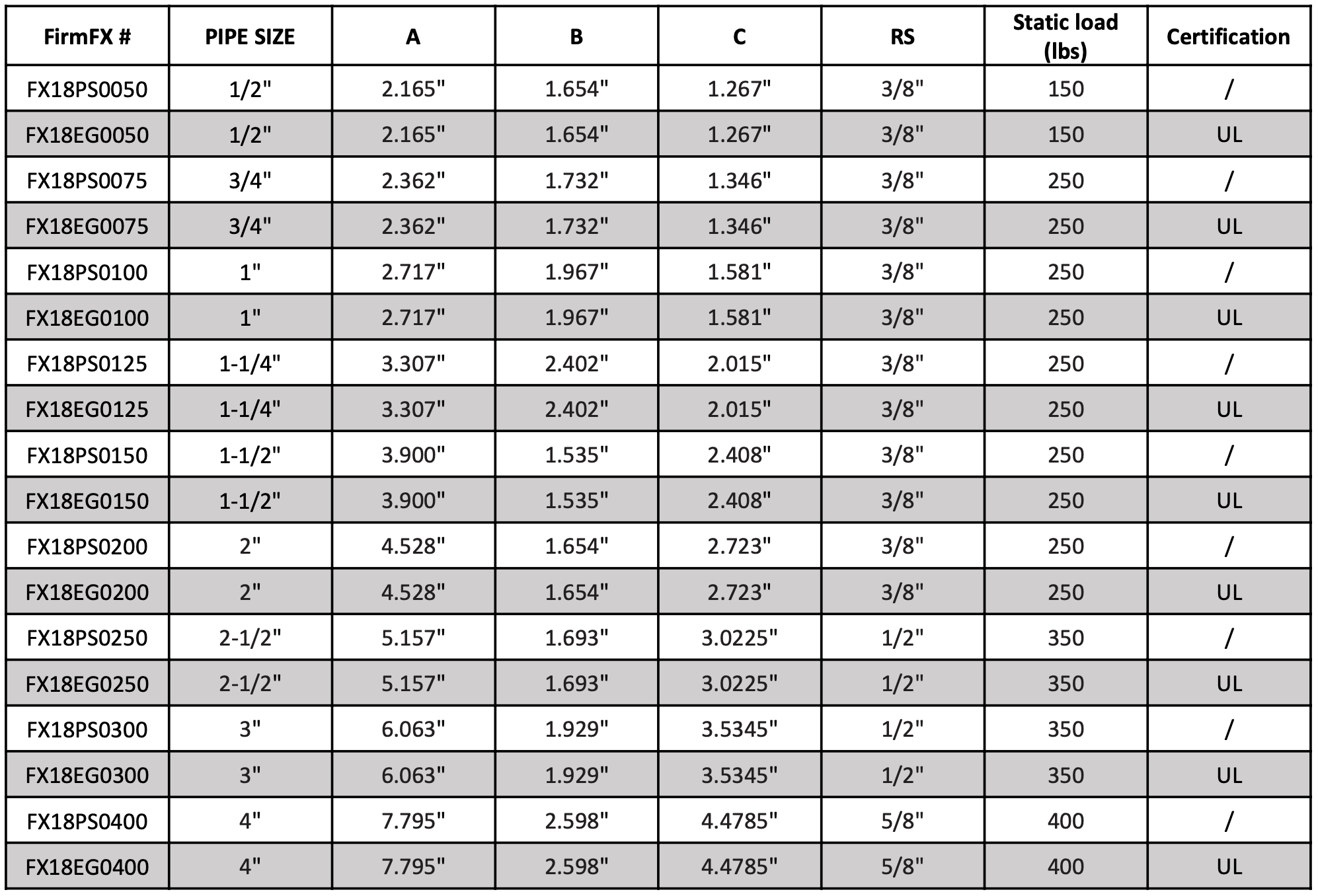

Size Range: 1/2″ through 4″

Material: Carbon steel

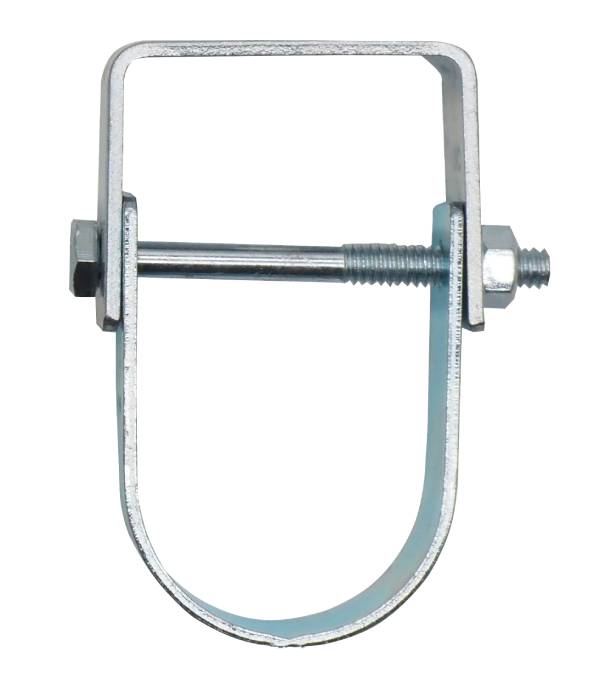

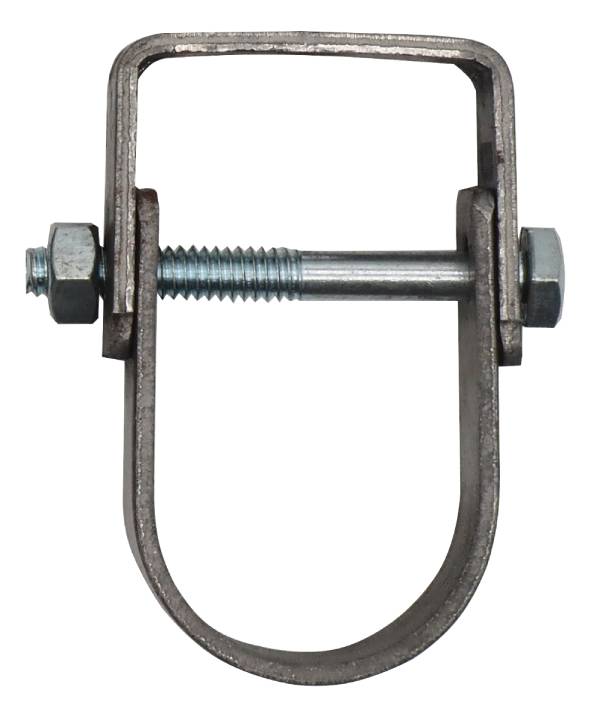

Finish: Plain, Electroplated Galvanized.

Function:

– Allows vertical adjustment of pipe after installation.

– When using an oversized clevis, it is recommended to install a full-width spacer on the cross bolt to prevent failure due to disfiguring the U-strap.

– When using insulated pipe, order hanger sized to correspond to overall dimension. It is also recommended to use insulation shields.

Temperature: Maximum temperature Plain 650°F, Galvanized 450°F.

Standard: Conforms with Federal Specification WW-H-171 (Type 1)

Manufacturers Standardization Society (MSS) SP-69 (Type 1)

Approval: UL listed 1/2″ through 4″
